In the textile industry, the dyeing process has advanced significantly, especially with the demand for vibrant colors and lasting performance on synthetic fabrics. One such technological advancement is the HTHP dyeing machine, a vital piece of equipment that ensures consistent dyeing, especially for polyester. This article dives into the full scope of HTHP dyeing machines, including its working principle, parts, diagram, and benefits in polyester dyeing.

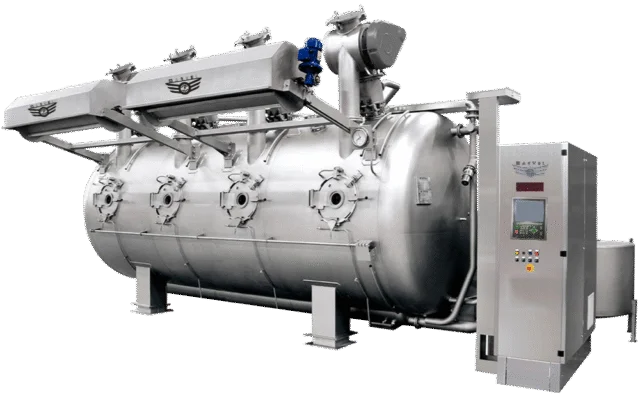

What is an HTHP Dyeing Machine?
The HTHP dyeing machine full form is High Temperature High Pressure Dyeing Machine. As the name suggests, this machine is specifically designed to dye synthetic fibers like polyester, nylon, and acrylic under conditions where both temperature and pressure are higher than conventional dyeing methods.
Traditional dyeing techniques struggle with synthetic fibers due to their compact polymer structure. These fibers require higher temperatures to open their pores and allow the dye to penetrate effectively. The HTHP machine meets this need efficiently and safely.
How Does an HTHP Dyeing Machine Work?
The machine operates as a closed system where fabric or yarn is circulated in a dye bath under controlled high temperature (120–140°C) and high pressure. The process usually includes the following steps:
- Loading the material – yarn, fabric, or garments are placed inside the dye vessel.
- Adding dye liquor – water, dye, and auxiliaries are added.
- Heating the vessel – using an internal or external heat exchanger.
- Dyeing process – temperature is raised to the desired level and maintained.
- Cooling – the system is cooled gradually before unloading.
This allows the dye molecules to penetrate deeply into the fibers, ensuring even coloration, excellent fastness properties, and reproducibility.
HTHP Dyeing of Polyester
HTHP dyeing of polyester is one of the most common industrial applications. Polyester is a thermoplastic synthetic fiber, and dyeing it requires dispersion dyes, which work effectively at high temperatures.
In this process:
- The polyester fabric is scoured and loaded into the HTHP dyeing machine.
- Dispersion dye is applied in a closed chamber, gradually heating to 130–135°C.
- The dyeing time is typically 30–60 minutes depending on shade depth.
- After dyeing, a reduction clearing process is often done to remove unfixed dye.
This method ensures colorfast, vibrant shades on polyester fabrics, with minimal dye wastage and energy use compared to older methods.
HTHP Dyeing Machine Diagram

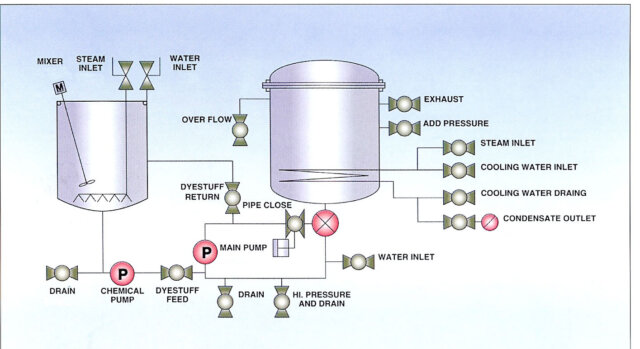

To better understand how the machine operates, let’s look at the HTHP dyeing machine diagram and its components.
Key Parts Typically Shown in Diagram:
- Dyeing vessel – the main pressure-tight container
- Heat exchanger – regulates dye bath temperature
- Circulating pump – maintains movement of dye liquor
- Nozzle or jet system – circulates material within the dye bath
- Control panel – for setting temperature, pressure, time, and chemical dosing
- Safety valves and drain – to ensure secure operations and discharge of materials
A diagram helps technicians and engineers understand the dye flow, heating mechanism, and control systems involved.
HTHP Dyeing Machine Parts Explained
Knowing the HTHP dyeing machine parts is essential for proper operation, maintenance, and troubleshooting. Below are the major components:
1. Dyeing Vessel
Made of stainless steel, this vessel handles high temperature and pressure. It contains the fabric/yarn and dye solution.
2. Circulation Pump
Ensures uniform dye distribution by circulating the dye liquor continuously through the material.
3. Jet Nozzle or Winch System
Depending on the machine type (jet or winch), this system circulates the fabric inside the chamber, ensuring even dyeing.
4. Heat Exchanger
Manages heating and cooling processes by transferring thermal energy efficiently, using steam or electrical heating.
5. Control Unit
A digital or PLC-based system that controls and automates dyeing parameters such as temperature, flow, and duration.
6. Safety Mechanisms
Includes pressure release valves and emergency shut-off systems for operator safety.
Understanding these parts is crucial for operators to optimize dyeing performance and minimize machine downtime.
Advantages of Using HTHP Dyeing Machines
- Superior Dye Penetration: Essential for synthetic fibers.
- High Productivity: Faster dyeing cycle with excellent results.
- Eco-Efficiency: Reduced water, energy, and chemical use.
- Automation and Control: Ensures precision and repeatability.
- Space Saving: Vertical machines are compact and suitable for modern units.
HTHP vs. Atmospheric Dyeing Machines
| Feature | HTHP Dyeing Machine | Atmospheric Dyeing Machine |
|---|---|---|
| Temperature Range | Up to 140°C | Up to 98°C |
| Pressure Operation | High Pressure | Normal Pressure |
| Suitable for | Polyester, Nylon | Cotton, Rayon |
| Energy Consumption | Higher | Lower |
| Cost | Higher | Lower |
FAQ Section
What is an HTHP dyeing machine?
An HTHP (High Temperature High Pressure) dyeing machine is used to dye synthetic fabrics like polyester under high pressure and temperatures up to 140°C. It enables deep, uniform dye penetration with vibrant colorfastness and is a staple in modern dyeing units.
What is the CPB dyeing machine process?
The Cold Pad Batch (CPB) process is a low-energy dyeing method mainly for cotton. Fabric is padded with dye and chemicals, then batched and stored at room temperature for hours to fix the dye. It is eco-friendly, cost-effective, and suitable for reactive and direct dyes.
What is the price of CPB dyeing machine?
The cost of a CPB dyeing machine depends on capacity and automation. In India, prices start from ₹8–10 lakhs for basic units and can reach ₹25 lakhs or more for larger, advanced models. Features like automatic dosing and batch control influence pricing.
What is the high temperature dyeing method?
High temperature dyeing is used for synthetic fabrics like polyester. It involves dyeing at temperatures of 130–140°C under pressure to allow dye molecules to penetrate dense fibers. This method provides excellent fastness, vivid shades, and is executed in HTHP dyeing machines.
Conclusion
The HTHP dyeing machine is a critical asset for textile manufacturers focused on synthetic fabrics. Its ability to handle high temperatures and pressure ensures that dyes bond effectively, producing vivid, durable colors. Understanding its working principles, parts, and process can lead to better performance, reduced waste, and higher fabric quality.
With increasing demand for synthetic blends in fashion and home textiles, investing in the right HTHP machine is not just an operational choice—it’s a strategic one.
